GJJ passenger hoist motor Good performance SC200/SC200 electric construction hoist elevator AC380V rossi motor

Short Description:

GJJ passenger hoist motor, we also provide SEW NORD Rossi motor.

Rossi HBZ_100LB4_4.25 kW

Rossi HBZ_132M4_10.6 kW

Rossi HBZ_132MC4_15.5 kW

Rossi HBZ_132S4_7.8 kW

Rossi HBZ_160L4_22.5 kW

Rossi HBZ_160SC4_15.5 kW

Rossi HBZ_180L4_33 kW

Rossi HBZ_200L4_B5_48060_36kW


  • Supply Ability: 10000 Piece/Pieces per Month
  • Loading Port: Shanghai
  • Payment Terms: T/T % in advance
  • Model Number: 11KW 15KW
  • Lift Speed: 36m/min
  • Power supply: 380V 50Hz Three-phase
  • Maximum Lifting: 2 tons
  • Application: Construction Hoist
  • Name: GJJ passenger hoist use motor
  • Product Detail

    Quality guarantee

    Product Tags

    @jingyang machinery

    @sribs safety device

    380V GJJ hoist motor Good performance SC/SC electric construction hoist elevator AC motors

    GJJ passenger hoist motor, we also provide SEW NORD Rossi motor.

    Rossi HBZ_100LB4_4.25 kW

    Rossi HBZ_132M4_10.6 kW

    Rossi HBZ_132MC4_15.5 kW

    Rossi HBZ_132S4_7.8 kW

    Rossi HBZ_160L4_22.5 kW

    Rossi HBZ_160SC4_15.5 kW

    Rossi HBZ_180L4_33 kW

    Rossi HBZ_200L4_B5_48060_36kW

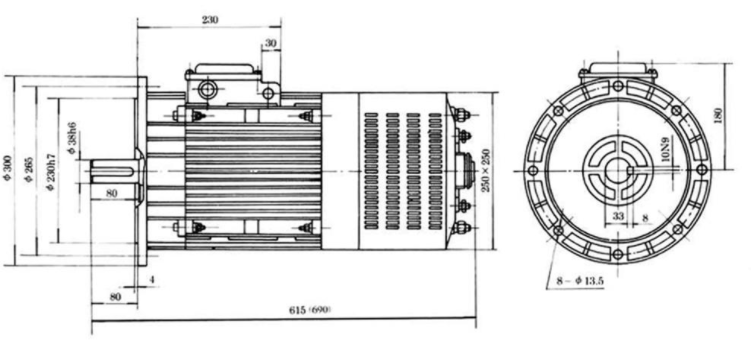

    Model Construction hoist spare parts mechanical parts
    Power 11kw/15kw
    speed 1400r/min
    Brakemoment 120Nm
    D.Speed 1403r/min
    Frequency 50Hz
    Connection Y
    Brake Gap 1.5mm
    Voltage 380V
    Current  24A a.c/1A.D.C
    Lnsulation Class F/F

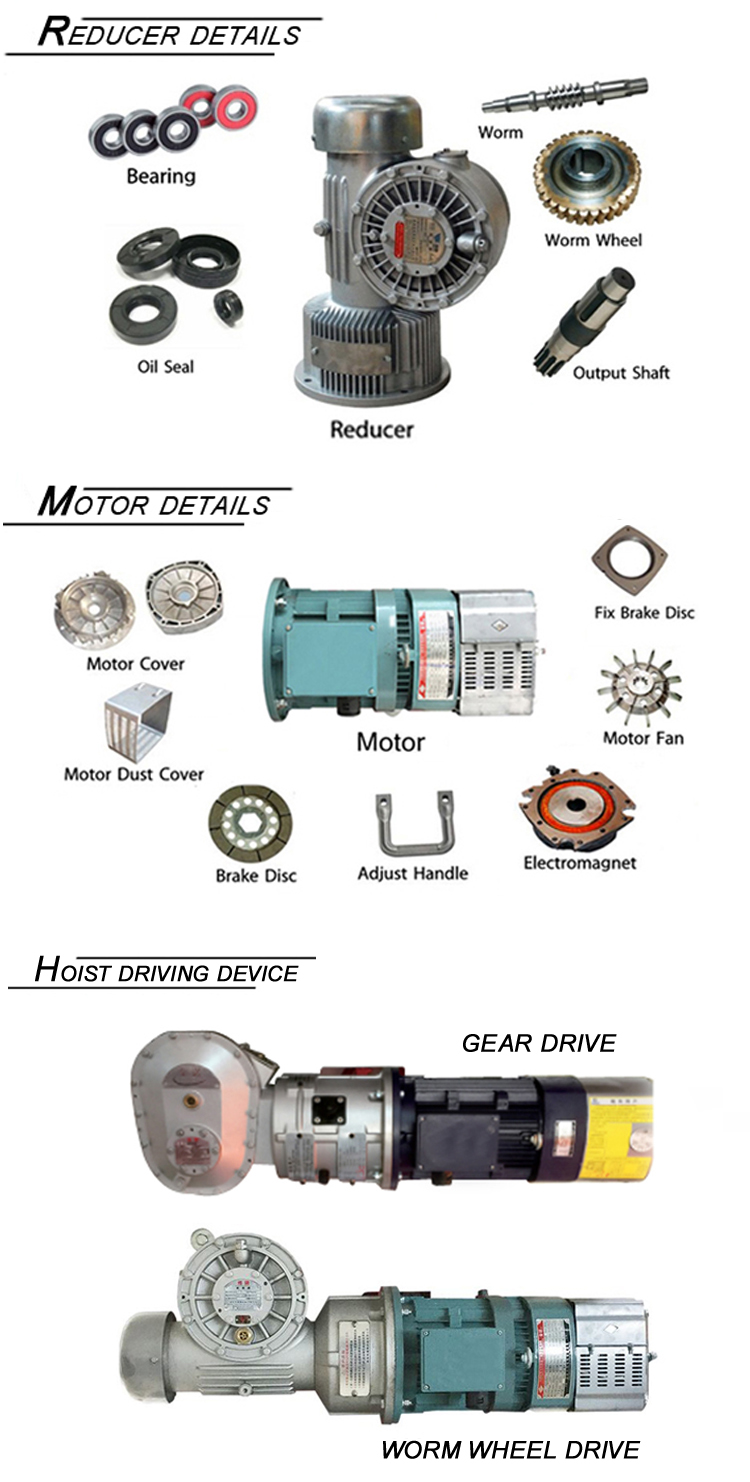

    Model construction hoist gearbox
    Ratio  16: 1
    Rating 11kw
    Input 1500r/min
    Center distance 125

    A. Features

    1.It is equipped with fully safety devices to guarantee the safe working;
    2.Stable running and comfortable adaptability;
    3.The transmission system adopts two-drive motors and three-drive motors. Planar double-eveloping worm gear reducer is adopted ensuring the high efficiency, max payload and long service life;

    4.Simple electrical control system, easy operation and convenient maintenance withlow failure rate.

    B.Tower Crane Hoist Motor is one part of construction hoist:

    1. Production process: Strict material selection— blanking— inspection — welding— inspection— Blasting — inspection —Baking finished or galvanized— inspection — Finished Product;

    2. The product can be customized according to customers’requirements (drawing, specifications and so on);

    3. The cage is boarded up by all punched aluminum sheet ,Sidewall of Wire Mesh for cage is also avaliable. The size can be arranged to your requirement;
    4. Main structure of cage is made of high-quality steel after bending.(The bended steel is firm, good verticality, stability.  Moreover it ensure stable of the whole structure);
    5. Electrical an Mechanical interlock: Door safety switches, Slack rope switch;

    6. Upper and bottom limit swithes, trap door limit switch;
    7. Overload protector;
    8. Bottom Buffer;
    9. Level Calling system and auto leveling device to be choose;
    C.Features of the Y series 3 phase & 2 phase electric motor
    1.Compact design and comfortable operating experience;

    2.Single or double cage configurations;

    3.Design without counterweight;
    4.Use perforated aluminum plate as a decorative plate of the cage;
    5.Galvanize Mast section offered;
    6.Wide range of optional equipments and functions;
    7.Competitive factory price;
    8.Move by good quality rack and pinion;
    9.Stable platform lift;

    D.Our services

    When your order shipping out .we will provide you a tracking no in express or B/L. then you can know clearly the status of the goods

    Specifications

    Type Cage Capacity (kg) Speed (m/min) Motor (kw)
    SC 200 single 2000 36 3*11
    SC 200/200TD double 2000*2 36 2*3*11
    SC 100 single 1000 36 2*11
    SC 100/100TD double 1000*2 36 2*2*11
    SC 150 single 1500 36 2*11
    SC 150/150TD double 1500*2 36 2*2*11
    SC 270 single 2700 36 3*15
    SC 270/270TD double 2700*2 36 2*3*15
    SC 320 single 3200 36 3*18.5
    SC 320/320TD double 3200*2 36 2*3*18.5
    VFD device optional, the speed:0-36 m/min,0-63 m/min,0-96 m/min
    Can be customized according to customers’ demand

    HTB1ykIFSFXXXXc0XFXX760XFXXXx

    HTB1HxX2X7fb_uJkHFJHq6z4vFXap
