China Calling System Hoist Application Mckke

Short Description:

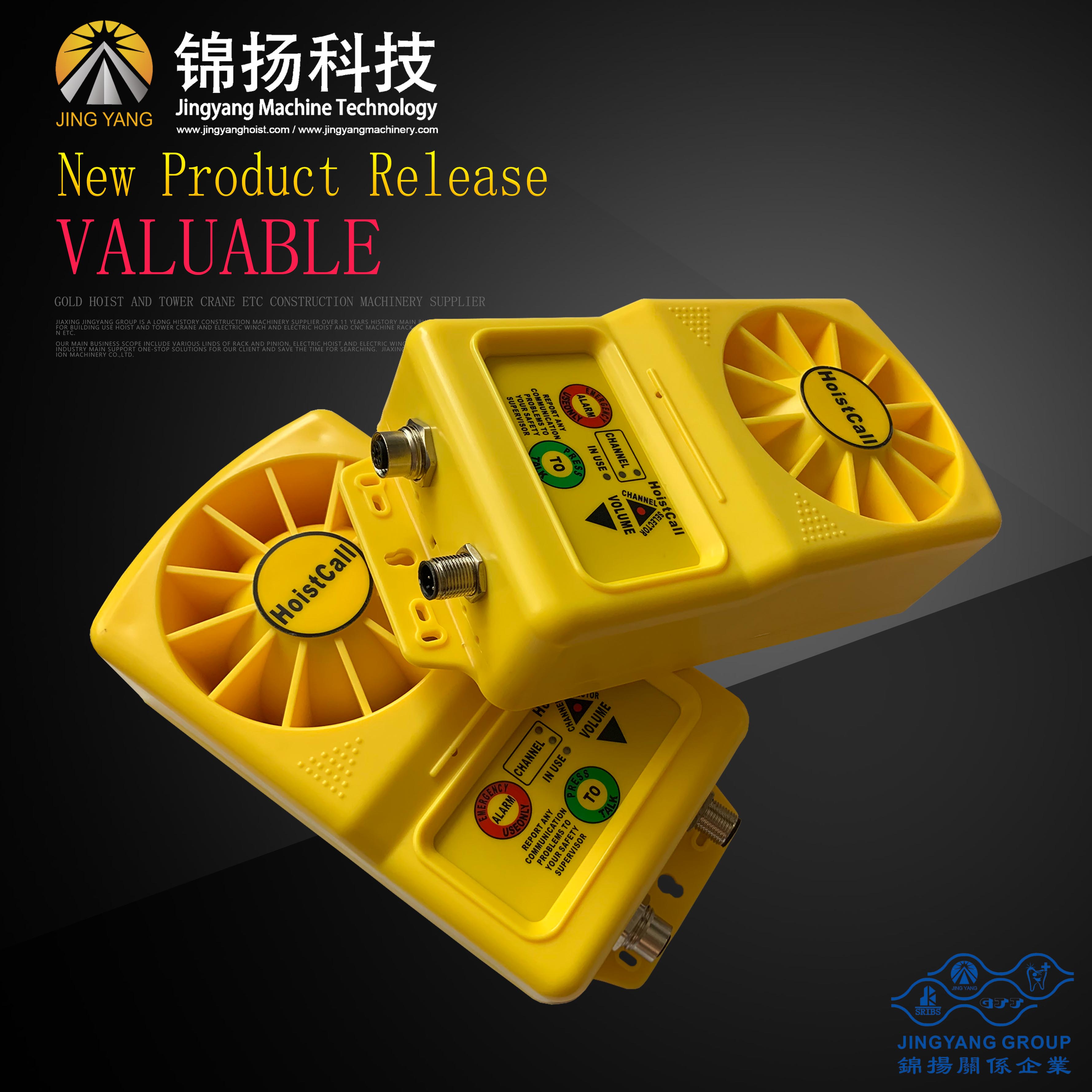

MCKKE Passenger hoist calling system


  • Supply Ability: 10000 Piece/Pieces per Month
  • Loading Port: Shanghai
  • Payment Terms: T/T % in advance
  • Brand: JINGYANG
  • Power: 110VAC or 220VAC input, 12V output.
  • Frequency: 3 phase
  • Application: Passenger hoist
  • Product Detail

    Quality guarantee

    Product Tags

     MCKKE-passenger-hoist-calling-system (2)

    JIAXING JINGYANG CONSTRUCTION MACHINERY CO.,LTD profile
    Jiaxing Jinngyang Construction Machinery Co.,Ltd is a professional factory in construction machinery, equipment, material & spare parts. Dedicated to provide a complete solution to mechanical & civil construction with quality products and perfect service Enjoying good reputation of business by respecting & satisfying our customers. Looking back to the past, we have made one brilliant achievement after another with our efforts and your support. Looking forward to the future, we are determined to be with you as always on the way to greater success and win-win results.We have following Tower crane, passenger hoist, suspended platform,electric winch, electric hoist, gear rackand pinion, worm and shaft, electric units, scaffolding and etc. In addition to the good quality of our products,we also have our profrssional technical service provide the clients with our best after-service. We have supplied more than 80 units of passenger hoist, 140 units of suspended cradle to the market since 2007.
    Passenger hoist mckke calling phone
    INTRODUCTION
    The system is used in the industrial elevator of the building elevator and the construction hoist.
    This system provides an emergency call between the construction of the floor inside the building and elevator driver, can be used as a general intercom system.Because the radio frequency does not need to apply, the product can be used in the construction of the elevator intensive areas of reliable use, will not affect each of the reliable communication. It greatly improves the product efficiencyand can effiectively prevents acidents.
    FUNCTIONAL CHARACTERISTICS
    1:The signal transmission is carried out by using the protection loop line, the signal is stable and reliable, and the special communication cable is not required.
    2:The signal line and power line a re not connected with high voltage, and the system is safe and reliable.
    3:No elect romagnetic wave pollution, don’ t need to apply for radio frequency can be used in the construction of the elevator intensive and authentic and other construction a reas, and will not affect each other.
    4:Press the button for intercome function, it can prompt the communications is bus also has the squelch function.
    5:Elec ronic volume control, convenient volume adjustment.
    6:There is alarm button, can be used in emergency condition.
    7:Three frequencies available, voice clear and naturral.
    SPECIFICATION PARAMETER
    1:Supply voltage 220VAC or 110VAC (Please make sure that when the order confirmed!)
    2:Effective range more than 300 meter (Conductor loop resistance<600 ohm)
    3:Three frequencies available 250KHz 741KHz or 800KHz
    SYSTEM INSTALLATION
    The installation method of the intercome on each floor can be referenced to the left of the following view. Fit the intercom and connect the intercom with the accessory cable. Note: a dedicated power supply device can only drive less than twenty. In another with the drawings, another port dedicated power supply connected to the junctionand then connected to the coupler. In the first floor of the construction elevator, the protective ground wire passes through the hole of the coupler, and it’s connect to the ground. Important note for installation, in the communication system, the protect grounding wire passing through the coupler can not be grounded in the middle grade.
    The installation method of the cage intercom see below right view. Inaccording with the drawings, connect the intercom, the call device power supply, and the coupler cage, the protective ground wire passes through the hole of the coupler, and it connected with the ground.
    Note: The power supply of the calling device and the special power output
    have the difference between 110V AC and 220V AC. Please make sure that w
    hen the order is confirmed!
    Technical date

    Date show

    wind speed and wind power shown

    Power

    DC 12V±1%

    Insulation ability

    ≥10MΩ

    Dimensions

    190mm×106mm×53mm

    Power dissipation

    ≤15W

    Alarm wind power settings

    Depend on your requirement

    Description of terminal of special power supply device:

    NO CABLE EXPLAIN
    1 L Power(Blue) Three core cable
    2 N Power(Brown)
    3 G Ground(Yellow)
    4 -V Cable shield The four core shielded cable
    5 -V Negative power(Brown)
    6 +V Positive power(Black)
    7 +V Positive power(Blue)



    SYSTEM INSTRUCTIONS
    INTERCOME UNIT
    After the power supply is turned on, the channel frequency LED and the Transmitting receiving LED are red at the same time. At this time, if the system is not used, they turn green. If possible use the intercome, the channel frequency LED is red. At this time, push buttons to adjust volume, Press”talk” button and talk to the microphone above emergency while the channel frequeny indicator’s green.(effective range 10-20cm.)
    Change Channel
    1:Press and hold the switch.

    2:Press and hold the “EMERGENCY ALARM” switch. The alarm will no
    t sound. Do not release this switch until the channel is set.
    3:Press on and off the button 4 times, until the “CHANNEL” LED color
    changes. This switch must be pressed three times to activate the chann
    el change mode. Then the CHANNEL LED Color (channel) will change
    with each press of the switch.
    4:When the Channel LED is the color desired, release the “EMERGENCY
    ALARM” switch. The channel is now set.

    State Explain
    Green LED Channel 1, 250KHz (FactoryDefault)
    Red LED Channel 2, 741KHz
    Green + Red LED Channel 3, 800KHz

    Description of three operation frequency States
    IMPORTANT: Each unit in a system must be set to the same channel(LED color) to communicate. The channel setting is shown is shown by the color of the”CHANNEL” tricolor LED when the unit is powered up.

    Power Unit
    When the AC power supply is suddenly interrupted, the whole system is powered by the BD-110VAC (or BD-220VAC) backup power supply, which is automatically closed after1 hours of continous power supply. If the system needs to work,press the red reset switch on it’s shell to restart the battery power supply. BD-110VAC (or BD-220VAC) battery backup power supply, such as the need to tun off the power supply, please press the reset switch.
    When the AC power supply is provided, the system automatically switches to the normal power supply state, and the battery in the backup power supply of BD-110V BD-220VAC) is charged.Backup power output 12VDC, 0.5Amp.

    State Explain
    Green and red LED on 110VAC or 220VAC input, 12V output.
    Green LED on 220VAC malfunctioning, backup power unit kick in.
    Green and Red LED blinking system overload, both green and red LED return to normal
    after reboot.
    Green LED bliking Too low voltage.

     MCKKE-passenger-hoist-calling-system (3)

    MCKKE-passenger-hoist-calling-system (4)

    MCKKE-passenger-hoist-calling-system (5)

    MCKKE-passenger-hoist-calling-system (6)MCKKE-passenger-hoist-calling-system (7)

    MCKKE-passenger-hoist-calling-system (8)





    RFQ
    Are you trading company or manufacturer ?
    A: We are factory.
    Q: How long is your delivery time?
    A: Generally it is 3-7 days if the goods are in stock. or it is 15-20 days if the goods are not in
    stock, it is according to quantity.
    Q: Do you provide samples ? is it free or extra ?
    A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
    Q: What is your terms of payment ?
    A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance
    before shippment.
    If you have another question, pls feel free to contact us as below:

    Item Part No. English name Item Part No. English name
    1 DL-0 Cage 31 WG-19 Worm gear fan
    2 WG-0 Reducing device 32 MAC-8 Rubber
    3 MAC-010 Motor 33 WG-5 Woem wheel
    4 ZJ-0 Mast section 34 WG-15 Worm
    5 XS-00 Safety device 35 MAC-9 Couping
    6 HY Hydraulic spring 36 MAC-020 Pinion
    7 TIE Tie-in 37 ZJ100-10 Rack
    8 TL-2 Safety device spanner 38 XK Drop test operate box
    9 PJ Pipe joint 39 CT Out operate box
    10 BL100-G Roller 40 FR Resistance
    11 BH-10 Cable joint 41 PS Waterproof plug
    12 ML100-9 Gate roller lower 42 SE 3-phase swotch
    13 ML100-10 Gate roller upper 43 TC Transfprmer
    14 WM130-40 Rope pulley 44 SDD Annunciator
    15 BS-10 “J ” type screw 45 PLC PLC Module
    16 BQ-10 Cable joint 46 QF Creepage switch
    17 BM-24 Screw 47 SL Limit switch
    18 TL-1 Roller spanner 48 FM Belling
    19 RA-9 Adjustment unit 49 JS Jacket
    20 RA-12 Brake pad 50 FS Fan
    21 SP Spring 51 SY EL lock
    22 DL-110 Rubber pad 52 F Drop test plug
    23 WG-03 Brearing 53 KCE Thermal relay
    24 WG-030 Oil seal 54 SQ Braker
    25 DXI-5 Nylon wheel 55 KMB Contactor
    26 RA-13 Rotary disk 56 BR Brake unit
    27 RA-120 Brake piece 57 SPL Speed relay
    28 RA-10 Brake disc 58 EL Lamp
    29 RA-7 Electromagnet 59 CS Calling system
    30 CAM-3 Counter roller 60 OL Overload
