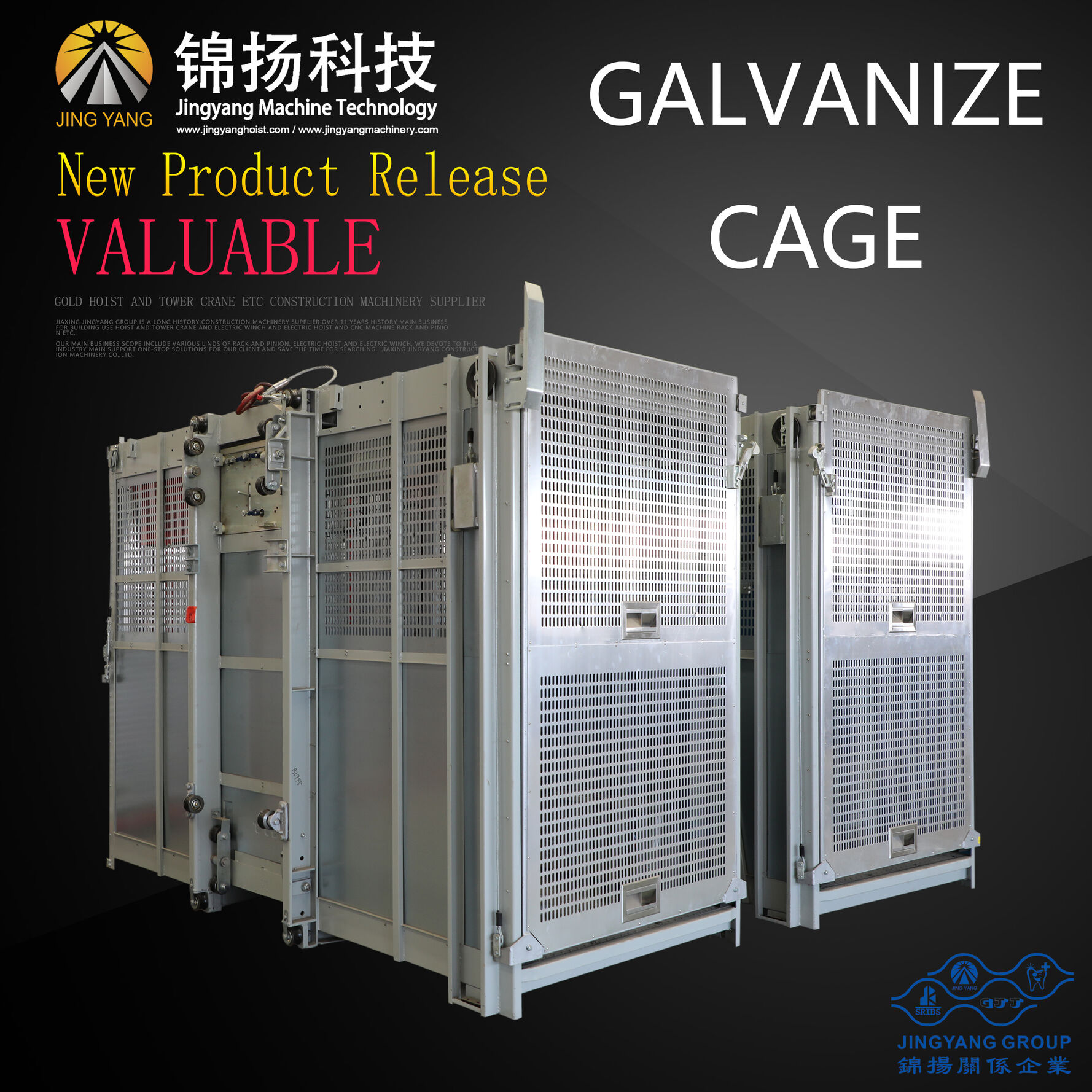

Hot dip galvanized origional GJJ hoist cage

Short Description:


  • Supply Ability: 10000 Piece/Pieces per Month
  • Loading Port: Shanghai
  • Payment Terms: T/T % in advance
  • Product Detail

    Quality guarantee

    Product Tags

    首页(2)

    JIAXING JINGYANG CONSTRUCTION MACHINERY CO.,LTD profile
    Jiaxing Jinngyang Construction Machinery Co.,Ltd is a professional factory in construction machinery, equipment, material & spare parts. Dedicated to provide a complete solution to mechanical & civil construction with quality products and perfect service Enjoying good reputation of business by respecting & satisfying our customers. Looking back to the past, we have made one brilliant achievement after another with our efforts and your support. Looking forward to the future, we are determined to be with you as always on the way to greater success and win-win results.We have following Tower crane, passenger hoist, suspended platform,electric winch, electric hoist, gear rack and pinion, worm and shaft, electric units, scaffolding and etc. In addition to the good quality of our products, we also have our profrssional technical service provide the clients with our best after-service. We have supplied more than 80 units of passenger hoist, 140 units of suspended cradle to the market since 2007.
    JINGYANG 650*650*1508mm passenger hoist mast section
    Product Description:
    GJJ mast section for construction hoist.
    Compatible with GJJ, Zoomlion, Tewei hoists, etc

    Height / Length 1508mm
    Main chord type and center distance Φ76×4.5mm; 650×650mm
    Rack type 40×60×1508mm; module=8
    Material Main chord: C20E4
    Rack:41 Cr4 (40Cr)
    Others: E235B
    Connection bolt type between neighboring mast sections 8.8 grade high strength bolt: M24×230
    with “plain washer + spring washer + nut”
    or “plain washer + locknut”
    Mass 150kg (with twin racks assembled and without bolts)
    Rack locating pin type Φ10×40mm
    Other key dimensions Please refer to the drawing
    Suggested max erection height Not above 150m (less than 100 pieces)
    Surface finish Hot-dip galvanized or painted





    Model NO.: sc200/200; sc100/100; sc200; sc100; sc150
    Lift Mechanism: Rack and Gear
    Attendant: With Attendant
    Deceleration Device: With Deceleration Device
    Elevator Door: Straight Fractional Door
    Cage: Double Cage(with Operation Cabin or No Cabin)
    Cage Dimension: 3*1.5*2.2m,3*1.3*2.2m,3.2*1.5*2.2m(Changeable )
    Rated Lifting Speed: 60m/Min
    Max Erection Height: 250m
    Motor Power: 2X13kw Per Cage
    Mast Section Size: 650X650X1508mm (or 800X800X1508mm)
    Mast Section Weight: 145-180kg (Double Racks)
    Wall-Tie Adjust Length&Qty: 2.8-3.2m 1pieces/5 Mast (Can Be Adjusted)
    Main Electrical System: Schneider(Can Be Equipped with PLC Fault Sensor )
    Trademark: JINGYANG
    Transport Package: Container
    Specification: SC100, SC200, SC150, SC100Z, SC150Z, SC200Z
    Origin: China

    SC200/200 SC100/100 Construction Hoist/Building Lift/Rack and Pinion elevator/Construction Elevator
    JIAXING JINGYANG is a professional manufacturer of construction hoist:

    1.10 Years Manufacture Experience
    2.Export to more than 20 Countries
    3.1 Year Warranty and Quick Delivery
    4. Quality approved by CE,ISO Certificates
    5. We can supply customized OEM service

    Technical parameter

    1.could be design according to different building situation. 5. All Production Line adopt special fixture, mould, gauge made by us to ensure all detaile size.
    2. With ISO9001, CE, SGS, BV, SASO certifications 6. Select high quality raw material from China Bao Steel Group, other like motors, reducers, gearbox, safety
    device with low noise, electrics is schneider or Korea repute brand with reliable quality.
    3. Double or Single cage with loading capacity from 500kg to 3000kg. 7. Special design, compact and reasonable structure, easy to installation and adjustment.
    4. With Frequency Inverter or DOL control system with low speed, MID speed, and high speed 8. Each equipment should be test and make record in Factory, all details will be adjust like
    Motor brake, safety device operation, all limit switch operation, dropping test, loading test, and mast section
    erection test to ensure the completed equipment run well when taken into use.



    Characteristic Model Rated Loading Lifting Speed Motor Power
    Double cages SC200/200 2x2000kg 33m/min 2x(3x11kw) /
    2x(3×8.5kw)
    SC150/150 2x1500kg 33m/min 2x(2x13kw)
    SC100/100 2x1000kg 33m/min 2x(2x11kw)
    Single cage SC200 2000kg 33m/min 3x11kw /
    3×8.5kw
    SC150 1500kg 33m/min 2x13kw
    SC100 1000kg 33m/min 2x11kw



    Characteristics Model Rated Loading Lifting Speed Motor Power
    Double cages Low speed SC200/200D 2X2000kg 0-40m/min 2x(3x11kw) /
    2x(3×8.5kw)
    SC100/100D 2x1000kg 0-40m/min 2x(2x13kw)
    Mid speed SC200/200Z 2x2000kg 0-60m/min 2x(2x23kw)
    SC100/100Z 2x1000kg 0-60m/min 2x(2x15kw)
    Single cage Low speed SC200D 2000kg 0-40m/min 3x11kw /
    3×8.5kw
    SC100D 1000kg 0-40m/min 2x13kw
    Mid speed SC200Z 2000kg 0-60m/min 2x23kw
    SC100Z 1000kg 0-60m/min 2x15kw
