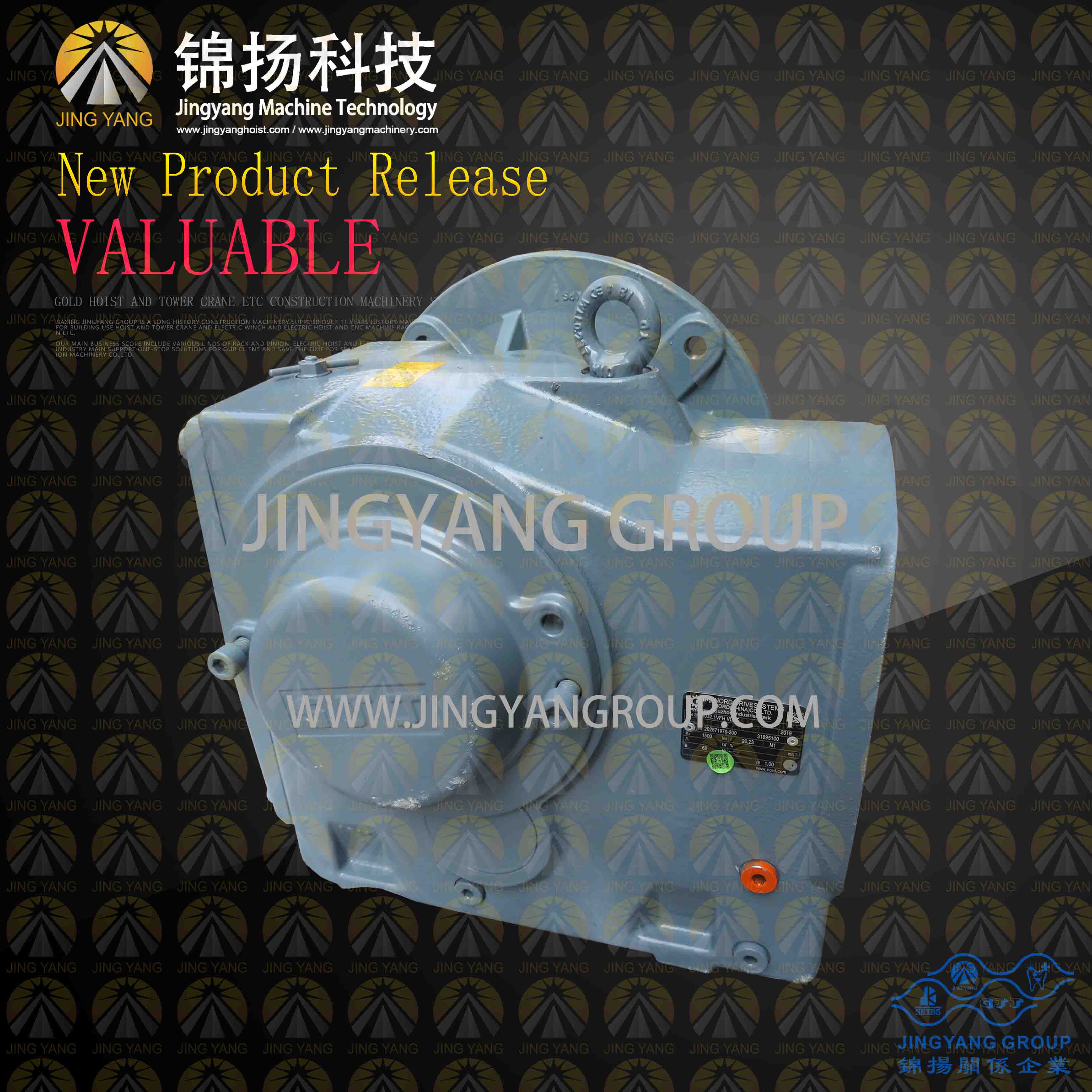

GJJ-ORIGIONAL-NORD-MOTOR

Short Description:

GJJ-ORIGIONAL-NORD-MOTOR

GJJ OEM NORD DESIGN MOTOR, ONLY SPECIAL USED FOR GJJ HOIST


  • Supply Ability: 10000 Piece/Pieces per Month
  • Loading Port: Shanghai
  • Payment Terms: T/T % in advance
  • Product Detail

    Quality guarantee

    Product Tags

    JINGYANG trademark obtained legal protection, where the website internal text and pictures, shall not be reproduced, once found, the legal responsibility. Noted!
    嘉兴锦扬机电设备有限公司注册商标受法律保护,网站内部图片及文字,请勿转载,一经发现,追究法律责任!
    JIAXING JINGYANG CONSTRUCTION MACHINERY CO.,LTD

    GJJ ORIGIONAL NORD MOTOR
    Profile
    Jiaxing Jinngyang Construction Machinery Co.,Ltd is a professional factory in construction machinery, equipment, material & spare parts. Dedicated to provide a complete solution to mechanical & civil construction with quality products and perfect service Enjoying good reputation of business by respecting & satisfying our customers. Looking back to the past, we have made one brilliant achievement after another with our efforts and your support. Looking forward to the future, we are determined to be with you as always on the way to greater success and win-win results.We have following Tower crane, passenger hoist, suspended platform,electric winch, electric hoist, gear rackand pinion, worm and shaft, electric units, scaffolding and etc. In addition to the good quality of our products,we also have our profrssional technical service provide the clients with our best after-service. We have supplied more than 80 units of passenger hoist, 140 units of suspended cradle to the market since 2007.

    GJJ-ORIGIONAL-NORD-MOTOR

    Classification
    Technical data of SC series genernal hoist
      Model Capacity  (kg) Lifting speed (m/min) Motor power _ Counter weight (kg)
    With  counter  weight SCD200 2000 36 2×11 1000
      SCD270TD 2700 36 3×11 1000
      SCD320TD 3200 36 3×11 1200
    No  counter  weight SC100TD 1000 36 2×11 /
      SC120TD 1200 36 2×11 /
      SC200TD 2000 36 3×11 /
    With  counter  weight SCD200/200 2×2000 36 2x2x11 2×1000
      SCD270/270TD 2×2700 36 2x3x11 2×1000
      SCD320/320TD 2×3200 36 2x3x11 2×1200
    No  counter  weight SC100/100TD 2×1000 36 2x2x11 /
      SC120/120TD 2×1200 36 2x2x11 /
      SC200/200TD 2×2000 36 2x3x11 /


    Technical data of SC series frequency convertible hoist
    Classification Model Capacity / per cage (kg) Lifting speed (m/min) Motor power / per cage (kW) Counter weight / per cage(kg)
    With  counter  weight SCD200G  (SCD200/200G) 2000 0-63 2×15 2000
        2000 0~96 3×15 2000
        2000 0~96 2×22 2000
      SCD270G  (SCD270/270G) 2700 0-36 3×11 1000
        2700 0~63 3×15 2000
        2700 0~96 3×18.5 2000
      SCD320G  (SCD320/320G) 3200 0~36 3×11 1200
        3200 0~63 3×15 2200
        3200 0-96 3×22 2200
    TO!  No  counter  weight SC100G  (SC100/100G) 1000 0〜36 2×11 /
      SC120G  (SC120/120G) 1200 0〜63 3×15 /
        1200 0~96 2×18.5 /
      SC200G  (SC200/200G) 2000 0-36 3×11 /
        2000 0〜46 2×11 /
        2000 0〜63 3×11 /
        5K2000 0〜96 3×18.5 /
        2000 0 〜120 3×22 /
      SC270G  (SC270/270G) 2700 0~46 3×11 /
        2700 0~63 3×15 /
        2700 0~96 3×22 /
      SC320G  (SC320/320G) 5K3200 0〜46 3×15 /
        3200 0〜63 3×18.5 /

    Remark :
    Standard cage dimension is 3.2xl.5×2.5m(2.35m), other available cage dimension: 2.5xl.3×2.5 , 3xl.3×2.5,3.6xl.5×2.5 , 3.8xl.5×2.5,4.0xl.5×2.5,4.2xl.5×2.5 , Special dimension can be made according to requirement of customer;
    Capacity lifting speed ect.can be selected according to requirement of customer;
    Standard mast section is 650x650x 1508mm,or can be made according to requirement of customer;
    Motor/reducer option: GJJ motor(chinese);nord motor special for GJJ( Germany);
    Tie-in type I apply for the heights 150m;
    The hoist over 200 meters with counter weight is not reconmended.



    Item Part No. English name Item Part No. English name
    1 DL-0 Cage 31 WG-19 Worm gear fan
    2 WG-0 Reducing device 32 MAC-8 Rubber
    3 MAC-010 Motor 33 WG-5 Woem wheel
    4 ZJ-0 Mast section 34 WG-15 Worm
    5 XS-00 Safety device 35 MAC-9 Couping
    6 HY Hydraulic spring 36 MAC-020 Pinion
    7 TIE Tie-in 37 ZJ100-10 Rack
    8 TL-2 Safety device spanner 38 XK Drop test operate box
    9 PJ Pipe joint 39 CT Out operate box
    10 BL100-G Roller 40 FR Resistance
    11 BH-10 Cable joint 41 PS Waterproof plug
    12 ML100-9 Gate roller lower 42 SE 3-phase swotch
    13 ML100-10 Gate roller upper 43 TC Transfprmer
    14 WM130-40 Rope pulley 44 SDD Annunciator
    15 BS-10 “J ” type screw 45 PLC PLC Module
    16 BQ-10 Cable joint 46 QF Creepage switch
    17 BM-24 Screw 47 SL Limit switch
    18 TL-1 Roller spanner 48 FM Belling
    19 RA-9 Adjustment unit 49 JS Jacket
    20 RA-12 Brake pad 50 FS Fan
    21 SP Spring 51 SY EL lock
    22 DL-110 Rubber pad 52 F Drop test plug
    23 WG-03 Brearing 53 KCE Thermal relay
    24 WG-030 Oil seal 54 SQ Braker
    25 DXI-5 Nylon wheel 55 KMB Contactor
    26 RA-13 Rotary disk 56 BR Brake unit
    27 RA-120 Brake piece 57 SPL Speed relay
    28 RA-10 Brake disc 58 EL Lamp
    29 RA-7 Electromagnet 59 CS Calling system
    30 CAM-3 Counter roller 60 OL Overload

    RFQ
    Are you trading company or manufacturer ?
    A: We are factory.
    Q: How long is your delivery time?
    A: Generally it is 3-7 days if the goods are in stock. or it is 15-20 days if the goods are not in
    stock, it is according to quantity.
    Q: Do you provide samples ? is it free or extra ?
    A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
    Q: What is your terms of payment ?
    A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance
    before shippment.If you have another question, pls feel free to contact us as below:
